TJ-AT-1520-S 室内外安装塑料接线盒 150×200×75

产品品牌：天齐TIBOX[中国]
产品名称：室内外安装塑料接线盒
产品型号：TJ-AT-1520-S
产品尺寸：150×200×75

订购热线：400-667-5159

产品介绍

599e9a1b81030

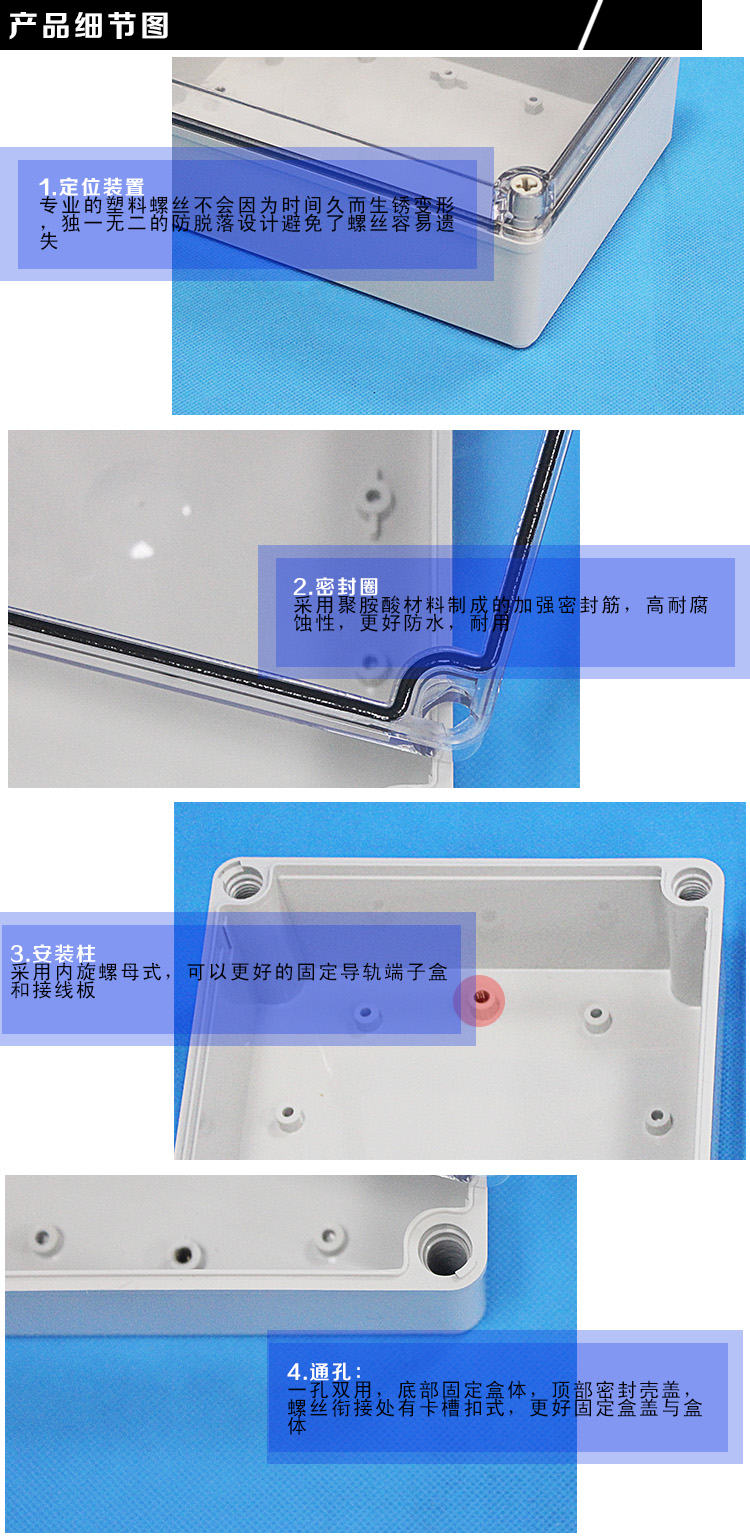

采用高强度PC耐火材料和UV添加材料制成，外形美观大方，具有很高的可塑性和坚固性。适用于端子箱、配电板、仪器盒、电力设备用BOX以及控制箱作用方便。

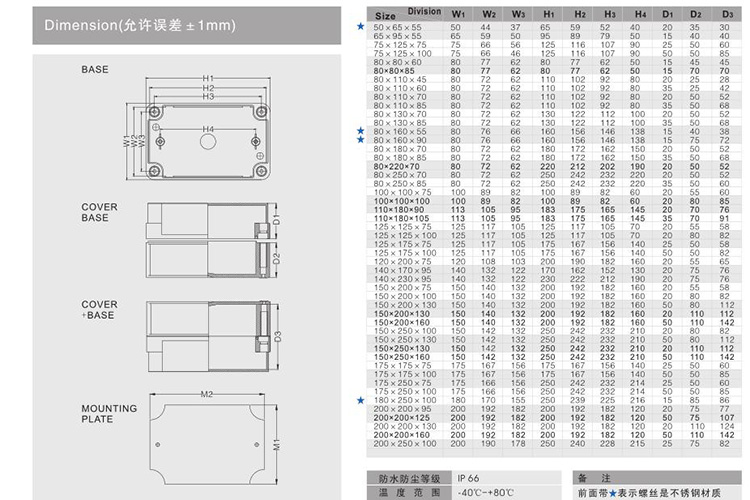

尺寸	产品型号				内板型号		金属内板规格
WHD	盖：灰色ABS 盒体：灰色ABS	盖：透明PC 盒体：灰色ABS	盖：灰色PC 盒体：灰色PC	盖：透明PC 盒体：灰色PC	塑料	金属	M1	M2
200x300x105	TJ-AG-2030	TJ-AT-2030	TJ-PG-2030	TJ-PT-2030	TJ-2030P	TJ-2030	180	275
200x 250 x100	TJ-AG-2025	TJ-AT-2025	TJ-PG-2025	TJ-PT-2025	TJ-2025P	TJ-2025	180	228
200x200x160	TJ-AG-2020-2	TJ-AT-2020-2	TJ-PG-2020-2	TJ-PT-2020-2	TJ-2020P	TJ-2020	185	185
200x 200 x130	TJ-AG-2020	TJ-AT-2020	TJ-PG-2020	TJ-PT-2020	TJ-2020P	TJ-2020	185	185
200x200x125	TJ-AG-2020-1	TJ-AT-2020-1	TJ-PG-2020-1	TJ-PT-2020-1	TJ-2020P	TJ-2020	185	185
200x200x95	TJ-AG-2020-S	TJ-AT-2020-S	TJ-PG-2020-S	TJ-PT-2020-S	TJ-2020P	TJ-2020	185	185
180x250 x 100	TJ-AG-1825	TJ-AT-1825	TJ-PG-1825	TJ-PT-1825		TJ-1825	160	230
175 x 250 x100	TJ-AG-1725-1	TJ-AT-1725-1	TJ-PG-1725-1	TJ-PT-1725-1	TJ-1725P	TJ-1725	155	230
175 x 250 x 75	TJ-AG-1725	TJ-AT-1725	TJ-PG-1725	TJ-PT-1725	TJ-1725P	TJ-1725	155	230
175 x175 x100	TJ-AG-1717-1	TJ-AT-1717-1	TJ-PG-1717-1	TJ-PT-1717-1	TJ-1717P	TJ-1717	159	159
175 x175 x 75	TJ-AG-1717	TJ-AT-1717	TJ-PG-1717	TJ-PT-1717	TJ-1717P	TJ-1717	159	159
150x250x160	TJ-AG-1525-3	TJ-AT-1525-3	TJ-PG-1525-3	TJ-PT-1525-3	TJ-1525P	TJ-1525	135	235
150 x 250 x130	TJ-AG-1525-2	TJ-AT-1525-2	TJ-PG-1525-2	TJ-PT-1525-2	TJ-1525P	TJ-1525	135	235
150x 250 x130	TJ-AG-1525-1	TJ-AT-1525-1	TJ-PG-1525-1	TJ-PT-1525-1	TJ-1525P	TJ-1525	135	235
150x 250 x100	TJ-AG-1525	TJ-AT-1525	TJ-PG-1525	TJ-PT-1525	TJ-1525P	TJ-1525	135	235
150x200x160	TJ-AG-1520-3	TJ-AT-1520-3	TJ-PG-1520-3	TJ-PT-1520-3	TJ-1520P	TJ-1520	136	185
150x200 x130	TJ-AG-1520-2	TJ-AT-1520-2	TJ-PG-1520-2	TJ-PT-1520-2	TJ-1520P	TJ-1520	136	185
150x 200 x130	TJ-AG-1520-1	TJ-AT-1520-1	TJ-PG-1520-1	TJ-PT-1520-1	TJ-1520P	TJ-1520	136	185
150x200x100	TJ-AG-1520	TJ AT-1520	TJ-PG-1520	TJ-PT-1520	TJ-1520P	TJ-1520	136	185
150x200 x 75	TJ-AG-1520-S	TJ-AT-1520-S	TJ-PG-1520-S	TJ-PT-1520-S	TJ-1520P	TJ-1520	136	185
140x 230 x95	FJ-AG-1423	TJ-AT-1423	TJ-PG-1423	TJ-PT-1423	TJ-1423P	TJ-1423	125	215
140x 170 x 95	TJ-AG-1417	TJ-AT-1417	TJ-PG-1417	TJ-PT-1417	TJ-1417P	TJ-1417	127	154
120x220x85	TJ-AG-1222	TJ-AT-1222	TJ-PG-1222	TJ-PT-1222	TJ-1222P	TJ-1222	95	175
120x 200 x 75	TJ-AG-1220	TJ-AT-1220	TJ-PG-1220	TJ-PT-1220	TJ-1220P	TJ-1220	95	175
125 x 175 x100	TJ-AG-1217-1	TJ-AT 1217-1	TJ-PG-1217-1	TJ-PT-1217-1	TJ-1217P	TJ-1217	112	162
125 x175 x 75	TJ-AG-1217	TJ-AT-1217	TJ-PG-1217	TJ-PT-1217	TJ-1217P	TJ-1217	112	162
125 x125 x100	TJ-AG-1212	TJ-AT-1212	TJ-PG-1212	TJ-PT-1212	TJ-1212P	TJ-1212	112	112
125x 125 x 75	TJ-AG-1212-S	TJ-AT-1212-S	TJ-PG-1212-S	TJ-PT-1212-S	TJ-1212P	TJ-1212	112	112
110x180x105	TJ-AG-1118-1	TJ-AT-1118-1	TJ-PG-1118-1	TJ-PT-111B-1	TJ-1118P	TJ-1118	98	168
110x180x90	TJ-AG-1118	TJ-AT-1118	TJ-PG-1118	TJ-PT-1118	FJ-1118P	TJ-1118	98	108
100x 100x100	TJ-AG-1010-1	TJ-AT-1010-1	TJ-PG-1010-1	TJ-PT-1010-1	TJ-1010P	TJ-1010	80	80
100x 100x75	TJ-AG-1010	TJ-AT- 1010	TJ-PG-1010	TJ-PT-1010	TJ-1010P	TJ-1010	80	80
80X250x100	TJ-AG-0825-2	TJ-AT-0825-2	TJ-PG-0825-2	TJ-PT-0825-2	TJ-0825P	TJ-0825	67	237
80x250x85	TJ-AG-0825-1	TJ-AT-0825-1	TJ-PG-0825-1	TJ-PT-0825-1	TJ-0825P	TJ-0825	67	237
80x250x70	TJ-AG-0825	TJ-AT-0825	TJ-PG-0825	TJ-PT-0825	TJ-0825P	TJ-0825	67	237
80x220x70	TJ-AG-0822	TJ-AT-0822	TJ-PG 0822	TJ-PT-0822	TJ-0822P	TJ-0822	67	209
80x180x85	TJ-AG-0818-1	TJ-AT-0818-1	TJ-PG-0818-1	TJ-PT-081B-1	FJ-0818P	TJ-0818	70	170
80 x 180x70	TJ-AG-0818	TJ-AT-0818	TJ-PG-0816	TJ-PT-0818	TJ-0818P	TJ-0818	70	170
80x160x90	TJ-AG-0816	TJ-AT-0816	TJ-PG-0816	TJ-PT-0816	TJ-0816P	TJ-0816	67	151
80x160x55	TJ-AG-0816-S	TJ-AT-0816-S	TJ-PG-0816-S	TJ-PT-0816-S	TJ-0816P	TJ-0816	67	151
80x 130x 85	TJ-AG-0813-1	TJ-AT-0813-1	TJ-PG-0813-1	TJ-PT-0813-1	TJ-0813P	TJ-0813	67	117
80x130x70	TJ-AG-0813	TJ-AT-OB13	TJ-PG-0813	TJ-PT-0813	TJ-0813P	TJ-0813	67	117
80x110x85	TJ-AG-0811-1	TJ-AT-0811-1	TJ-PG-0811-1	TJ PT-OB11-1	TJ-0811P	TJ-0811	67	91
80x110x70	TJ-AG 0811	TJ-AT-0811	TJ-PG-0811	TJ-PT-OB11	TJ-0811P	TJ-0811	67	91
80x110x60	TJ-AG-0811-1S	TJ-AT-0811-1S	TJ-PG-0811-1S	TJ-PT-0811-1S	TJ-0811P	TJ-0811	67	91
80x110x45	TJ-AG-0811-S	TJ-AT-0811-S	TJ-PG-0811-S	TJ-PT-0811-S	TJ-0811P	TJ-0811	67	91
80x80x85	TJ-AG-0808-1	TJ-AT-0808-1	TJ-PG-0808-1	TJ-PT-080B-1	TJ-0808P	TJ-0808	65	65
80x80x60	TJ-AG-080B	TJ-AT-0808	TJ-PG-0808	TJ-PT-0808	TJ-0808P	TJ-0808	65	65
75x125x100	TJ-AG-0712-1	TJ-AT-0712-1	TJ-PG-0712-1	TJ-PT-0712-1	TJ-0712P	TJ-0712	60	110
75x125x75	TJ-AG-0712	TJ-AT-0712	TJ-PG-0712	TJ PT-0712	TJ-0712P	TJ-0712	60	110
65x95x55	TJ-AG-0609	TJ-AT-0609	TJ-PG-0609	TJ-PT-0609
50x65x55	TJ-AG-0506	TJ-AT-0506	TJ-PG-0506	TJ-PT-0506		TJ/0506	40	55
